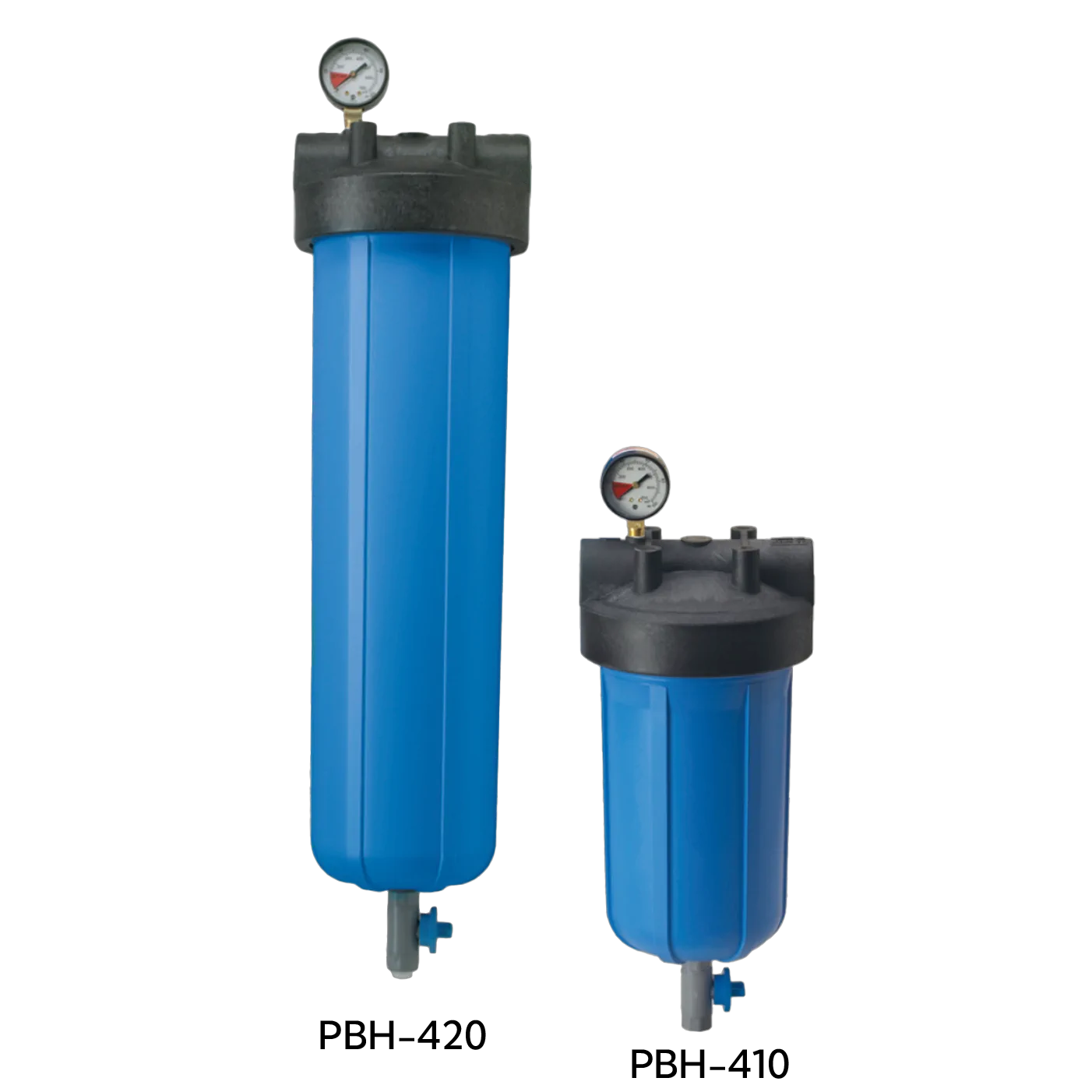

PBH SERIES BAG FILTER HOUSINGS
Outstanding chemical compatibility: Ideal for use in a variety of low-flow applications.
Spec Sheets
Brochures
Key Features
Lightweight, corrosion resistant: polypropylene construction gives you strength without weight
Choice of 10” and 20”: housings
Available in 1” and 1-1/2”: NPT sizes
Comes complete with: gauge, wrench and 3/8” drain valve
Light enough to: be portable
Economically priced.
Specifications and Performance

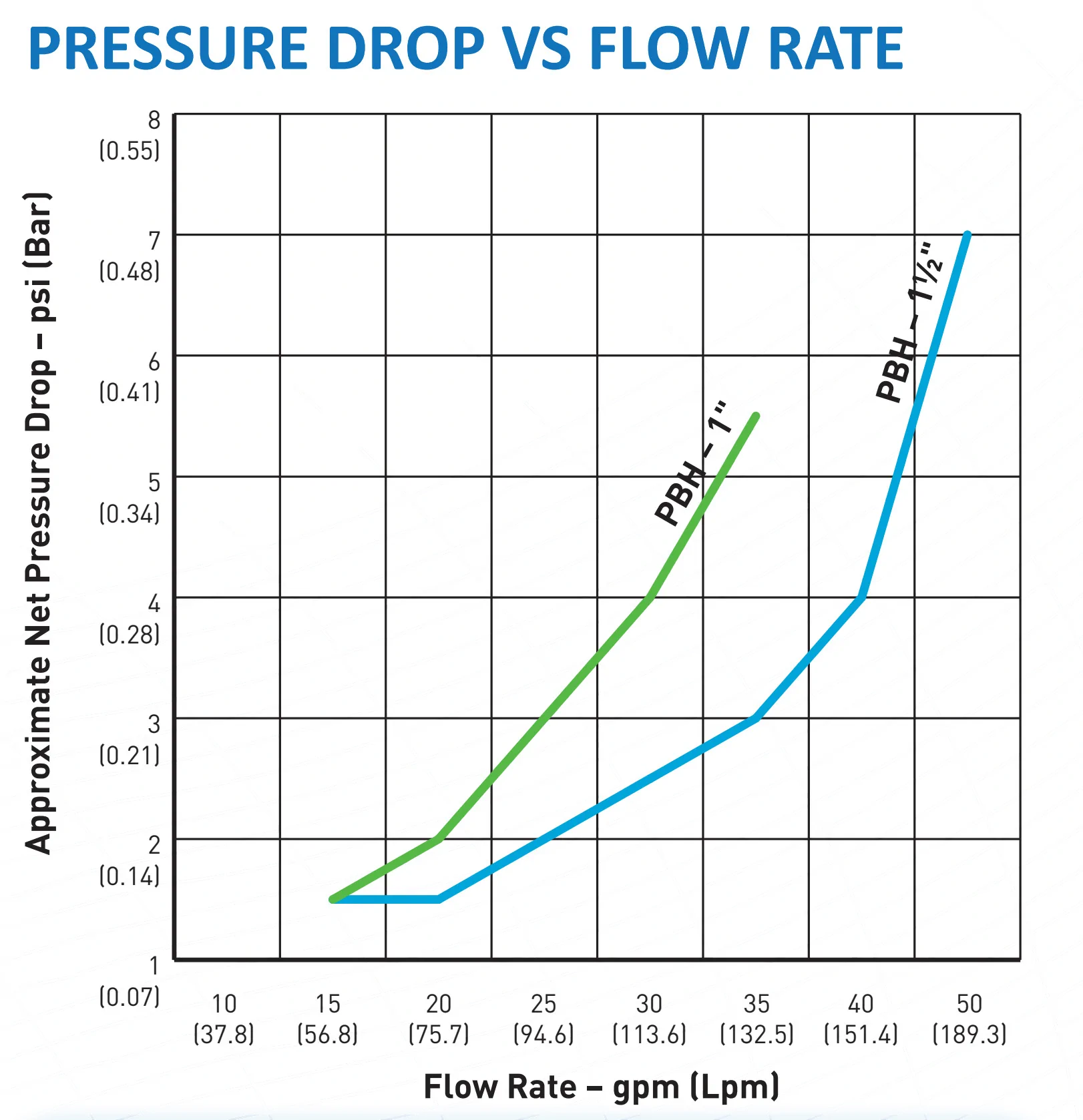

| PART # | MODEL # | PIPE SIZE | MAXIMUM DIMENSIONS | INITIAL ΔP (PSI) @ FLOW RATE (GPM) |
|---|---|---|---|---|
| 150360 | PBH-410-1 | 1″ NPT | 13.13″ x 7.25″ (334 x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) |
| 150367 | PBH-420-1 | 1″ NPT | 23.38″ x 7.25″ (594 x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) |
| 150338 | PBH-410-1.5 | 1½″ NPT | 13.63″ x 7.25″ (346 x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) |
| 150337 | PBH-420-1.5 | 1½″ NPT | 23.88″ x 7.25″ (607 x 184 mm) | 1 psi @ 15 gpm (0.07 bar @ 57 Lpm) |
Accessories
| PART # | MODEL # |
|---|---|
| 150296 | SW-3 Wrench for Big Blue for 10" |
| 144368 | SW-4 Wrench for Big Blue for 20" |
| 151122 | Big Blue O-Ring |
| 150061 | WB-ZP Kit - Powder Coated Bracket for Big Blue |
